BEAM New BEAM for SketchUp

Bring BIM to Rhino

Bring BIM to Rhino® and SketchUp® with BEAM.
Enrich geometry with BIM data, then import and export to and from Autodesk® Revit™ and IFC.

Available for

BEAM

Bring time back to design.

Rhino, Revit and IFC are connected in one practical workflow, so teams can focus on design instead of rebuilding models. BEAM keeps the geometry you already trust and adds BIM structure on top of it.

No complex scripts. No steep learning curves.
Just BIM made simple.

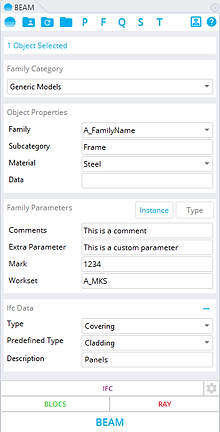

BEAM
⚙✕
1.15.4.13
F
P
Q
L
S
T
1 Object SelectedF+
Family Category
Generic Models
Ifc Data
Object Properties
Family
Unit 1
Subcategory
Frame
Material
Glass
Data
Family Parameters
Type
Instance
Level
<Automatic>
Default
Comments
North elevation, bay 4
Mark
CW-01-014
Panel Offset
25mm
Installed
Fabrication
IFCExport
IFCImport
BLOCS
RAY
BEAM
Tower.3dm - Rhino
Rhino viewport showing a tower façade with a selected cladding-module block.
In production at
SybariteSnøhettaFarrellsAdjaye AssociatesBIGOMASOMHerzog & de MeuronBDPHeatherwick StudioHenning Larsen3XNKPFAteliers Jean NouvelPopulousSMAQRSHPFoster + PartnersGenslerDiamond SchmittCOXArteliaAL_ABates SmartDorte MandrupAECOMUNSRPBWHKSWürthHenry J Lyons
Projects
Rhino BIM

Make Rhino BIM-aware.

BEAM lets teams assign BIM information to Rhino geometry and manage it in a dedicated panel. The data stays attached to the geometry it describes, ready to schedule or to send to Revit and IFC.

BEAM1 object selectedCategoryCurtain PanelsFamilyUnit 1Type1200 mmMaterialGlassLevelLevel 2MarkCW-07-014
  1. 1
    Tag the geometry

    Pick any Rhino object and give it a category, a family and a type.

  2. 2
    Add its data

    Parameters, materials and marks live on the object and travel with it.

  3. 3
    Schedule and deliver

    Build schedules in Rhino, or send the model to Revit and IFC.

Schedules—☐✕
Name
Curtain Panel Schedule
Door Schedule
Panel Quantities by Level
Add Open Rename Duplicate Remove
OKClose
Curtain Panel Schedule—☐✕
Parameters
Filters
Groups
Format
<Family>
<Category>
<Level>
Panel Width
Fire Rated
Unit 1 Curtain Panels Level 1
1200mm
Unit 1 Curtain Panels Level 1
1200mm
Unit 1 Curtain Panels Level 2
1200mm
Unit 2 Curtain Panels Level 2
1500mm
Unit 2 Curtain Panels Level 2
1500mm
Spandrel Panel Curtain Panels Level 3
1200mm
Unit 3 Curtain Panels Level 3
1800mm
Unit 3 Curtain Panels Roof
1800mm
Find Export
OKCancel
Format—☐✕
OrderColourParameterRule
1
Panel WidthIs greater than 1000 And Is less than 1500
2
Panel WidthIs greater than 1500
3
<Level>Equals Level 2
Add Edit Remove
OKClose
Format—☐✕
And
Panel Width
Rule
Is greater than
1000
Is less than
1500
Clear All
OKCancel
Rhino / Revit workflow

Rhino and Revit, connected.

BEAM links Rhino and Revit through four focused tools: geometry import, block-based family placement, adaptive components and Revit data return.

Module - Autodesk Revit
The same column-and-canopy module in a Revit 3D view, placed as a loadable family.
Module.3dm - Rhino
A column that flares into a square canopy, modelled in a Rhino viewport.
BEAM→ Revit

Rhino geometry becomes Revit families, with materials, categories and parameters.

Watch demo
BLOCS→ Revit

Rhino blocks place Revit family instances, keeping repeated elements controlled from Rhino.

Watch demo
URSA→ Revit

Rhino points, curves and polylines drive adaptive Revit components.

Watch demo
RAY→ Rhino

Revit geometry, layers, materials and parameters return to Rhino.

Watch demo
SketchUp / Revit workflowNew

SketchUp and Revit, connected.

BEAM now runs inside SketchUp by Trimble, and reads the model as you built it: names become Revit families, tags become categories, face materials become Revit materials. Send it to Revit with its parameters, and bring Revit models back into SketchUp.

Usonian 2020 - SketchUp
A Usonian house modelled in SketchUp, seen from the rear patio, with one set of living room French doors selected.
Model: Usonian 2020 by John Luttropp, 3D Warehouse.
BEAM→ Revit

Groups and components become Revit families, named as in SketchUp, in the category of their tag. Nested components arrive as nested families.

BLOCS→ Revit

Pick components by name or in the model, and each copy is placed as an instance of one Revit family.

RAY→ SketchUp

Revit elements return named by family and type, tagged by category, with their materials and parameters.

IFC exchange

Speak fluent IFC.

Import, export and visualize IFC files directly in Rhino. BEAM reads and writes IFC 2x3 and IFC 4, so your Rhino model joins any open BIM workflow: coordination, review or delivery.

IFC (Industry Foundation Classes), the buildingSMART open BIM standard Open BIM exchange
IFC 2x3 and IFC 4
Import and export using both schema versions.
Selective IFC import
Bring in only the IFC classes you need.
Properties preserved
Property sets, quantities and materials stay intact.
Whole-model exchange
Full-model import or read-only worksessions.
Class-driven layers
Layers mirror the IFC class hierarchy.
Duplex.ifc - Rhino
The IFC Duplex sample model cut open in a Rhino viewport, with its architecture, mechanical, electrical and plumbing elements, and one door selected.
In production

Your ally during the toughest deadlines.

BEAM is flexible, simple yet powerful, capable of handling complex geometry and large projects. Here is where teams lean on it most.

A building block made of some hundred and seventy unit modules, coloured by family type.
Complex geometry

Handle the hardest models.

Flexible, simple yet powerful, capable of handling complex geometry and large projects without slowing down.

An office building drawn with its architecture, structure and MEP in three colours, the way the disciplines come together when they exchange IFC.
Open BIM

Coordinate through IFC.

Import and export Rhino objects with their data in IFC 2x3 and IFC 4, so your model joins broader BIM workflows.

A small visual script, with Curve, Divide and Fin depth feeding BEAM data and To Revit, driving a facade whose fins change depth along its length.
Computational

Grasshopper and Dynamo.

Use Grasshopper to generate geometry and assign BEAM data, then drive complex Revit and Dynamo workflows.

Worldwide

The number one Rhino-Revit-IFC interoperability tool on the market.

Studios around the world rely on BEAM to move geometry and data between Rhino®, Revit and IFC.

108
Countries
6B
Objects exported
BEAM

Bring BIM to your Rhino models.

Download BEAM and start adding BIM structure to Rhino geometry, or get in touch about a production Rhino-to-Revit or Rhino-to-IFC workflow.

Need a Rhino or Revit workflow BEAM doesn't cover? We also develop custom tools for practices. Software development
